1. FPV Drone Frame Parameter Range:

The commonly referred to as a few inches frame is called according to the largest blade that the frame can support, and the wheelbase is measured by the distance between the midpoints of the two diagonal motors. The following is a list of the general parameters of the Frame:

2. FPV Drone Frame Type:

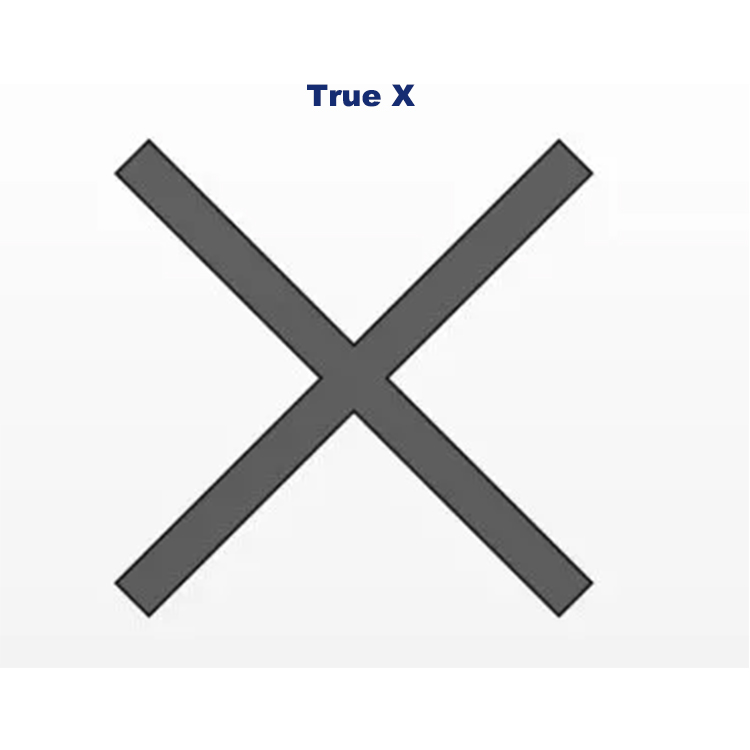

A. True X

Description: Description: The Angle between each shaft of the frame is 90° vertical, and the arm length is the same.

Features: The performance is balanced, the center of gravity is concentrated, the rotation torque of each side of this rack is equal, and it flies smoothly and has a strong sense of operation.

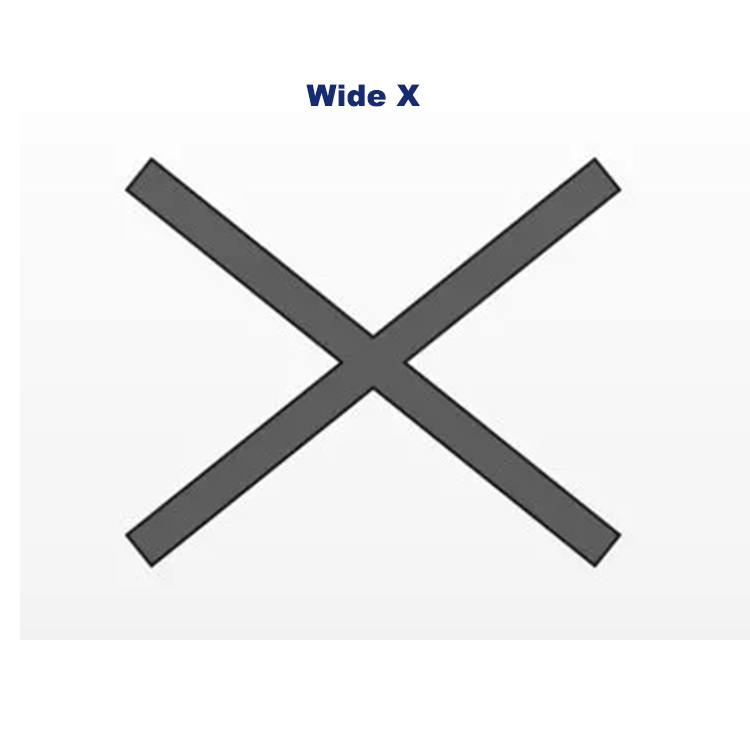

B. Wide X

Description: If the distance between the left and right motors is greater than the distance between the front and back motors, it is called Wide X.

Features: Sensitive pitch, soft roll, suitable for Freestyle.

C. Stretch X

Description: If the distance between the left and right motors is less than the distance between the front and back motors, it is called Stretch X.

Features: Soft pitch, sensitive roll, suitable for high-speed competition.

D. Hybrid Frame

Description: If the front two motor spacing is small, the rear two motor spacing is large, it can be called HybridX rack.

Characteristics: It is generally narrow in front and wide in back, and the different rolling torque before and after high-speed flight can reduce the rod amount of Yaw when steering, helping the pilot fly faster.

E. Special-shaped X Frame

Introduce: Different X is before and after the left and right spacing are not equal.

Features: Customized according to the pilot's personal preferences.
