Specification

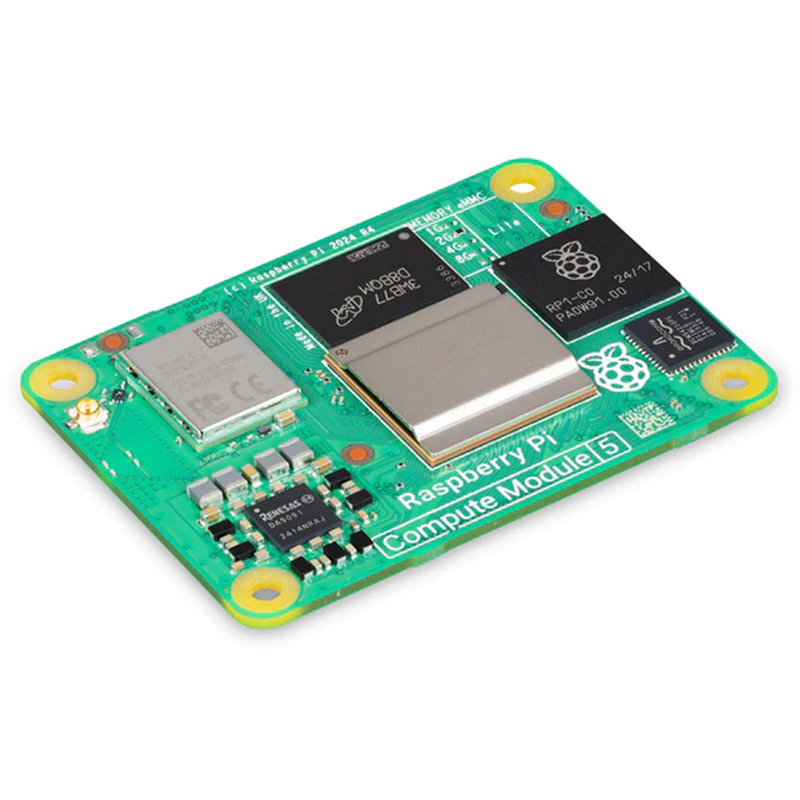

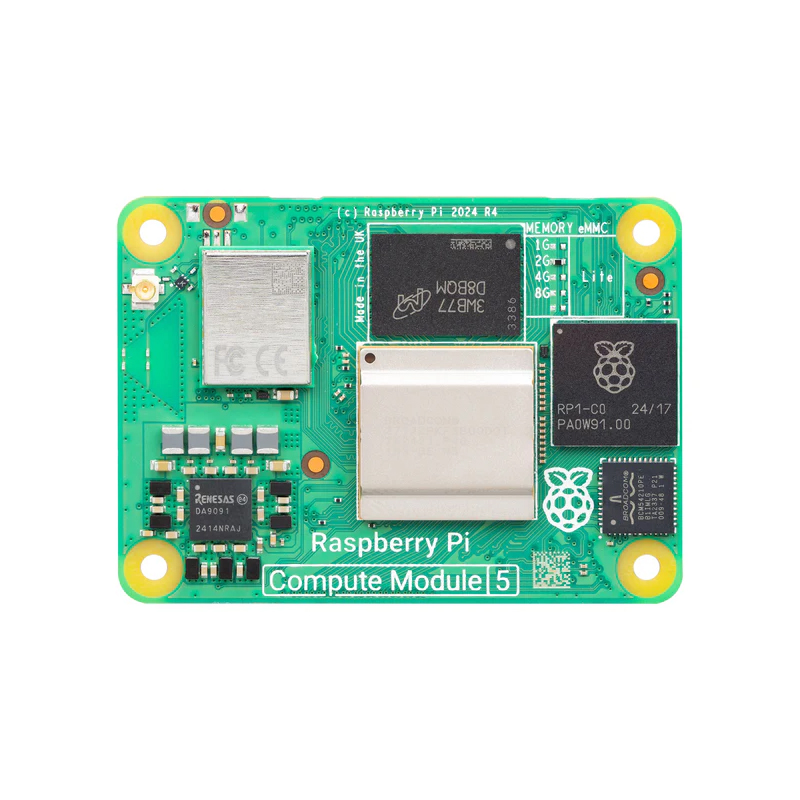

Product Description

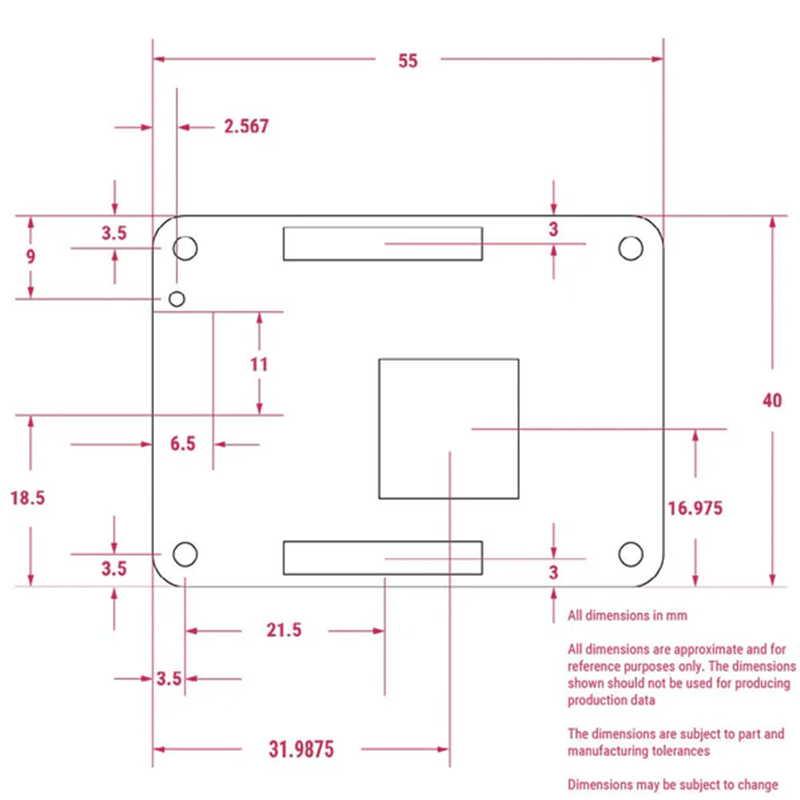

• 55 mm × 40 mm × 4.7 mm module

• 4 × M2.5 mounting holes

• Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz

• Memory options:

• 2GB, 4GB, 8GB LPDDR4-4267 SDRAM with ECC

• 0GB, 16GB, 32GB or 64GB eMMC flash memory

• Options for certified radio module containing:

• 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless

• Bluetooth 5.0, BLE

• On board electronic switch to select between PCB trace or external antenna

• Gigabit Ethernet PHY supporting IEEE 1588

• 1 × PCIe x1 root complex, Gen 2 (5Gbps)

• 1 × USB 2.0 port (high speed)

• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

• Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:

• Up to 5 × UART

• Up to 5 × I2C

• Up to 5 × SPI

• 1 × SDIO interface

• 1 × DPI (parallel RGB display)

• 1 × I2S

• Up to 4 × PWM channels

• Up to 3 × GPCLK outputs

• 2 × HDMI 2.0 ports (supports up to 4Kp60 on both ports simultaneously)

• 2 × 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port)

• 4Kp60 HEVC decoder

• OpenGL ES 3.1 graphics, Vulkan 1.2

• 1 × SDIO 2.0 (CM5 Lite)

•


Company Profile

Geermax Tech Co., Limited, since 2006, specialized in FPV Drone Parts, Development Boards & Electronic Components. We own powerful electronic components sourcing team.  Due to our professionalism, efficiency, and strong service awareness, we have many customers all over the world come to come to seek cooperation with us.

Geermax Products

FPV Drone Components

Drone Video Transmitter, VTX, Video Receiver, VRX, FC, ESC, Stack, Frame, Propellers, Motor, Camera, Antenna, Receiver, Transmit, High-frequency Head, FPV Goggle, Remote Control, Battery, Charger etc.

Development Boards

Raspberry Pi, Rock Pi, Orange Pi, Tinker Board and Accessories etc.

Electronic Components

IC chips, Relays, Transistors, Diodes, connectors, Crystals, Oscillators, Resonators, switches, AC Fans, Optoelectronics, power supplies, sensors, capacitors, resistors , inductors etc., as well as PCBA.

Geermax Advantages

1. Strong Sourcing Ability & Stock Ability

We have an exceptional team for all different kinds of Drone Parts, Development Boards and Electronic Components sourcing. Many hard-to-find parts, we're able to get for our honor customers. All parts are Original New. Meanwhile, most popular parts & PCBA are in stock.

2.One-Stop Services

Besides stronge sourcing ability for Drone Parts, Development Boards & Electronics components, we also provide PCB assembly services.  We offer all components in the bom to save Customers energy & Cost, then help them getting full products with quality control and fast delivery.

'Honest Cooperation, Endless Striving for Excellence, Win-win' is Geermax's philosophy. With this concept, we have been working very hard to achieve a win-win situation between Geermax and our Honor customers. Therefore, we have been winning a lot of reputation among customers all over the world. Looking forward to long-term cooperation with you.

Product Packaging
